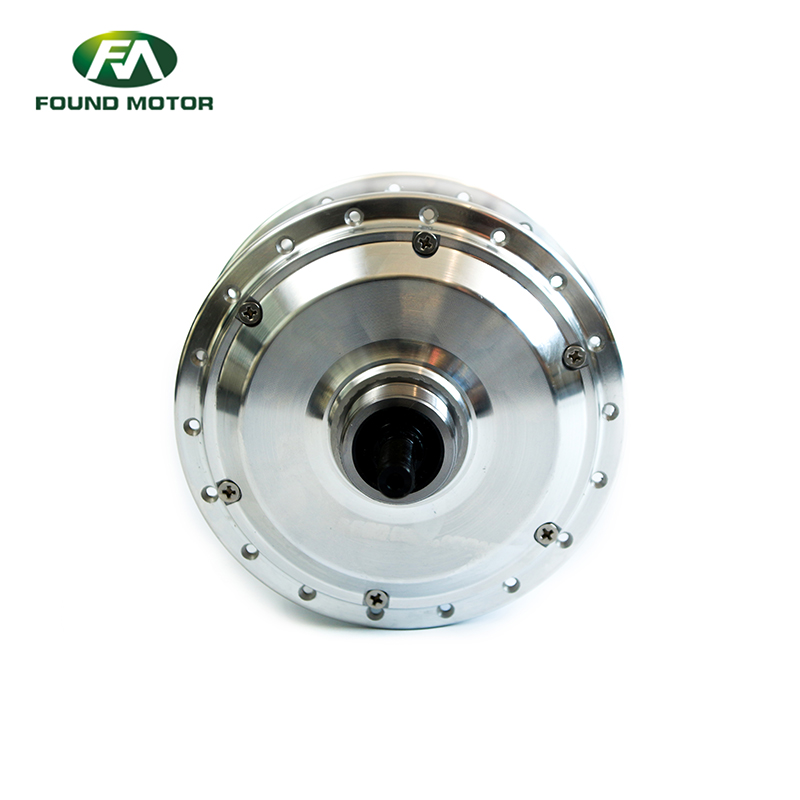

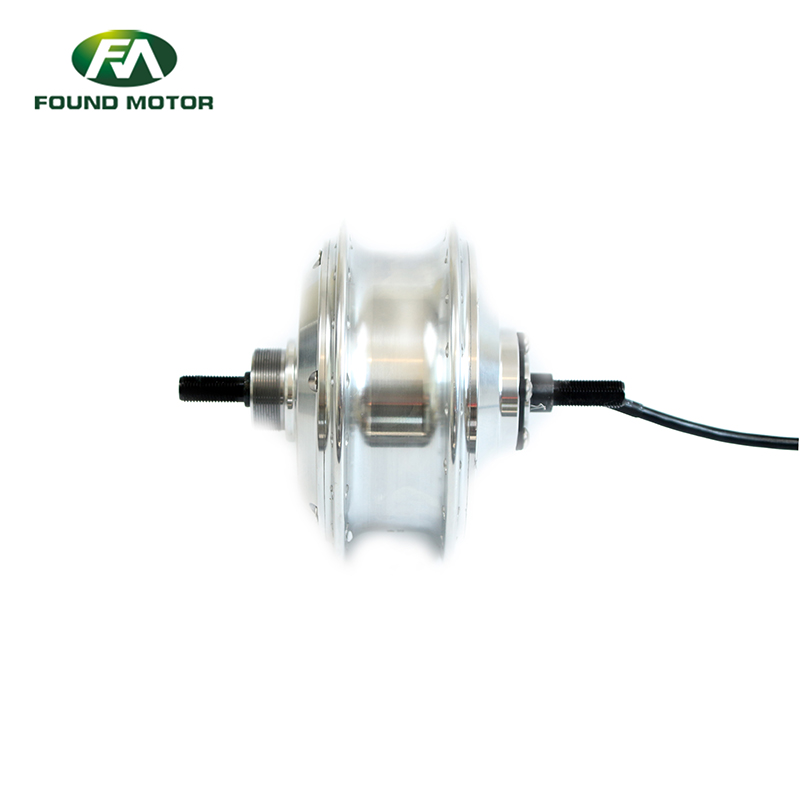

  • Product description: 26''36V 350W Electric bike spoke hub motor with waterproof cable
  • INQUIRY   EMAIL
Product Description:


Model

FM-01-01-92Z

Rated Voltage(V)

24/36/48

Rated Power(W)

180-350

Wheel Size

14-28

Spoke Specification

12G/13G

Spoke Holes

36

Rated  Speed(km/h)

25

Efficiency()

≥80

Reduction Ratio

1:4.4

Weight (Kg)

2.8

Open  Size(mm)

125

Drive And Freewheel

Rear drive/1S(single speed)

Cable  Location

Optional

Hall  Sensor

Optional

Inner Speed sensor

Optional

Surface

Black/Silver

Brake Type

V brake/Disc brake

Salt Fog Test(h)

24/96

Noise (db)

<55db

Waterproof Grade

IP54/IP65



Comments

1. Customized LOGO available.


2. Brushless geared motor,Brushless gearless motor optional.


2.1Brushless geared motor

Normal electric bike motor  24V/36V/48V,180W-1000W

Fat bike motor  36V/48V/52V/60V,250W-1200W


2.2Brushless gearless motor

Normal electric bike motor

36V/48V/52V/60V/72V,250W-1500W

Fat bike motor   36V/48V/52V/60V/72V 500W-8000W


3.Normal electric bike motor & electric bicycle motor available

Front drive motor(dropout 100mm)

Rear drive single speed motor(dropout 125mm)

Rear drive 6-9 speed motor(dropout 135mm)

Rear drive 6-11 speed cassette motor(dropout 142mm)


4.Fat bike motor

Front drive motor(dropout 100mm)

Rear drive 6-9 speed motor(dropout 170-190mm)

Rear drive 6-11 speed cassette motor(dropout 170-190mm)

PS:Rear drive fat bike motor with dropout 150-155mm can be Customized

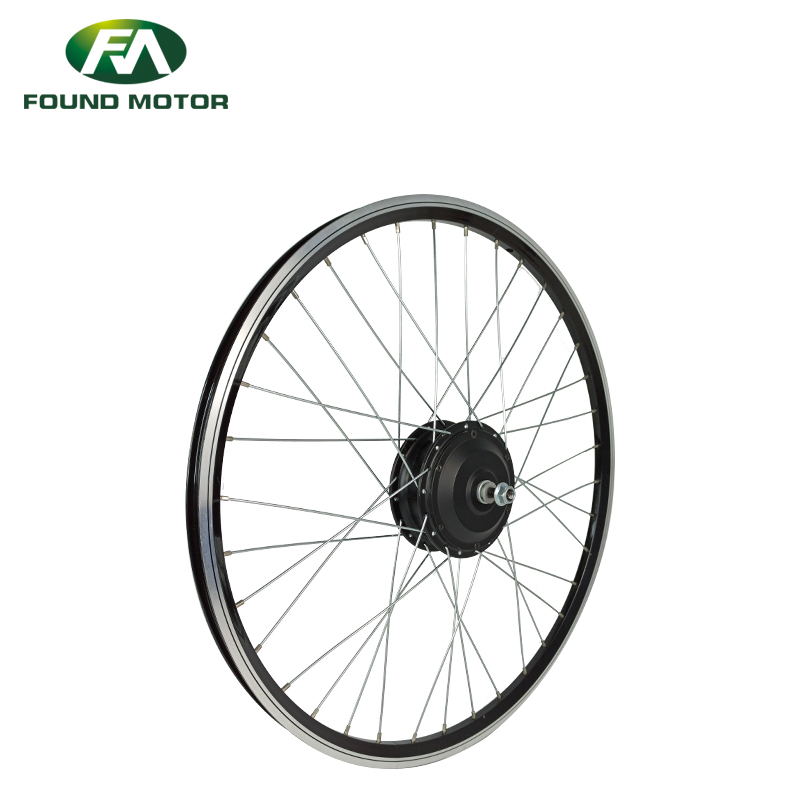

5.Spoke hub motor can be assemblied with double layers/wall aluminum rim,16-28*1.75-2.125,fat bike motor,16*4.0,20*4.0,26*4.0.


6.Spoke hub motor normally with 36 holes,24 holes,72holes can be customized.


7.Our motor with Dacro screws/nuts, gaskets(flat pad,stop pad),black rubber sleeve


8.Our motor with JULET waterproof cable.


9.All motors have matching electric control systems,Throttle with battery indicate,Throttle with digital display,LED & LCD control systems optional.
